JY-6060GH Four-Columns Precision Printing Machine
Brand: JianYu Tec.
Model: JY-6060GH
Service life: 600x600
Applicable temperature: 950x900
Insulation resistance(mΩ/500V): semi-automatic
Product Details

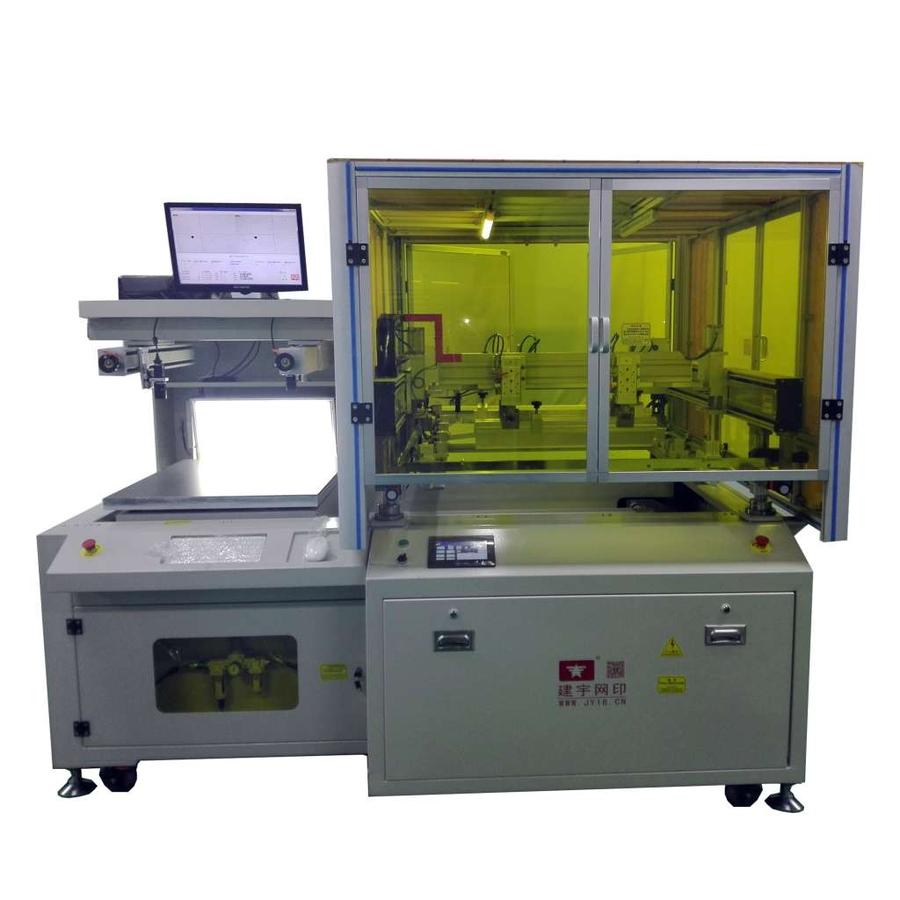

JY-6060GH-2 Four-Columns Precision Printing Machine


Photos




.

Applications:

High precision screen printing in dust-free working environment, such as LCD, EL, PCB (Printed Circuit Board), silica gel, flexible circuit, main substrate, Graphene,   Perovskite battery, etc.


Main Data:

NO

Model

parameter/unit


NO

Model

parameter/unit

1

platform   size

800×800 mm


13

Platform Repeated Positionin Accuracy

±0.015mm

2


Max Printing Size

600×600 mm


14


CCD resolution accuracy

0.0035mm

3


Min printing size

200×200mm


15


Distance from CCD to platform

250mm

4


Max frame size

950×1100 mm


16


Overprint accuracy

±0.05mm

5


Min frame size

950×900mm


17


Platform accuracy

±0.03 mm

6


Printing stock height

0.1~10mm


18


Clean screen height

320mm

7


Vacuum adsorption area

590×590mm


19


Platform height

900+50mm

8

Scraper pressure

0.4~0.6kgf/cm2


20

Compressed Air

0.5~0.7Mpa

9

Scraper angle

0°~45°


21

Air consumption

80L/min

10

Platform speed

50~1400mm/s


22

Voltage

380V/50Hz/3.0KW

11

Scraping/Flood coat speed

50~800mm/s


23

Power Consumption

4.6Kw





Version process


1

The ITO glass was manually placed on the platform.


2

The platform enters the printing station and determines the positional relationship between the screen and the glass based on the screen.


3

The platform exits to the position of the CCD, determines the "+" positional relationship between the CCD and the ITO, and saves it in the PC system.


4

The three positional relationships determined above are stored in the system as a post-production benchmark.

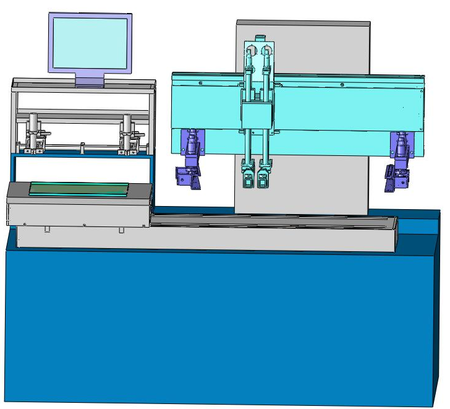

1.Manual Loading









Step 1




  Step 2& 3













Step 4

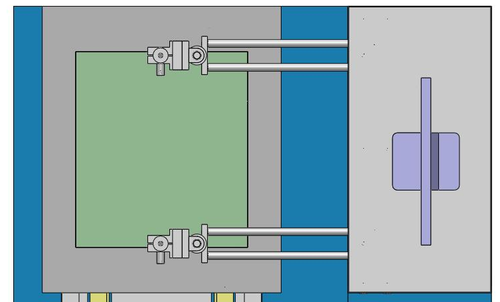

2.When producing

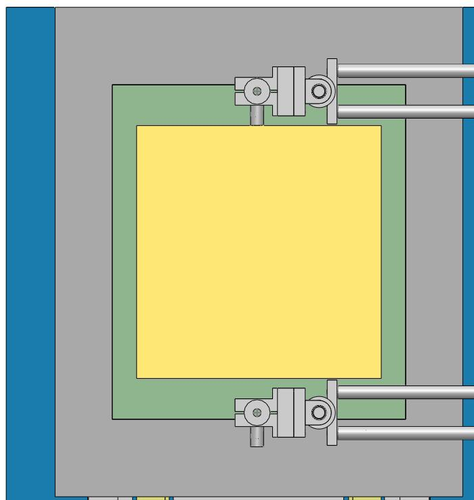

1.Goods ready


将待承印的ITO玻璃放置于平台


2.Match the position


按启动键,CCD视觉识别系统开始自动对位过程。


3.Platform In



Once match position successed, the platform into the printing position.


4.Under printing




Automatic finished the printing

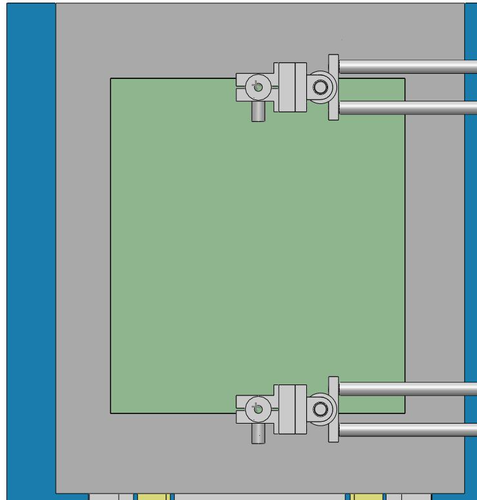

5.Platform out, Remove ITO glasses



The platform back to the original position, removed the printed ITO glass, finished.


6.Next printing cycle



Start next print
